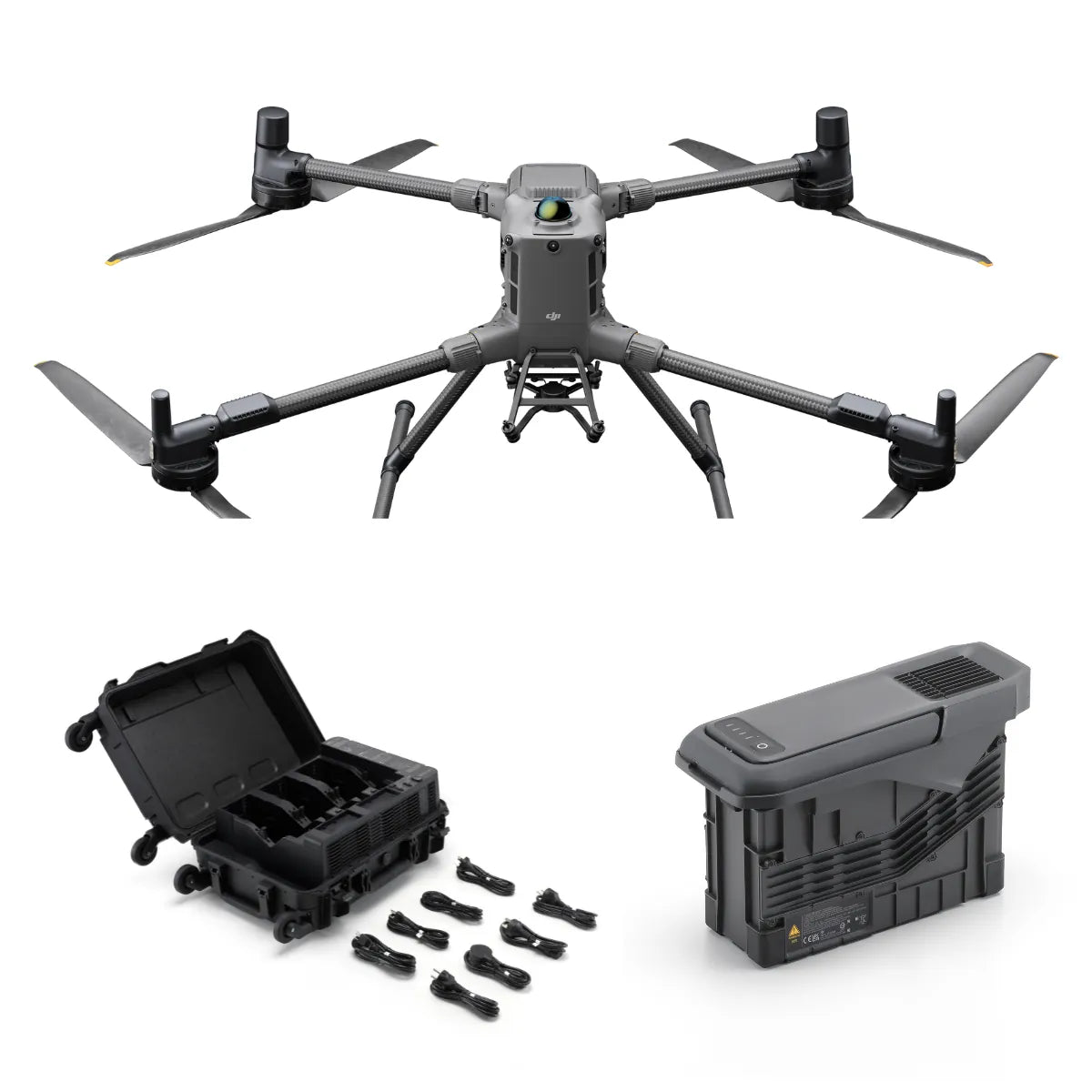

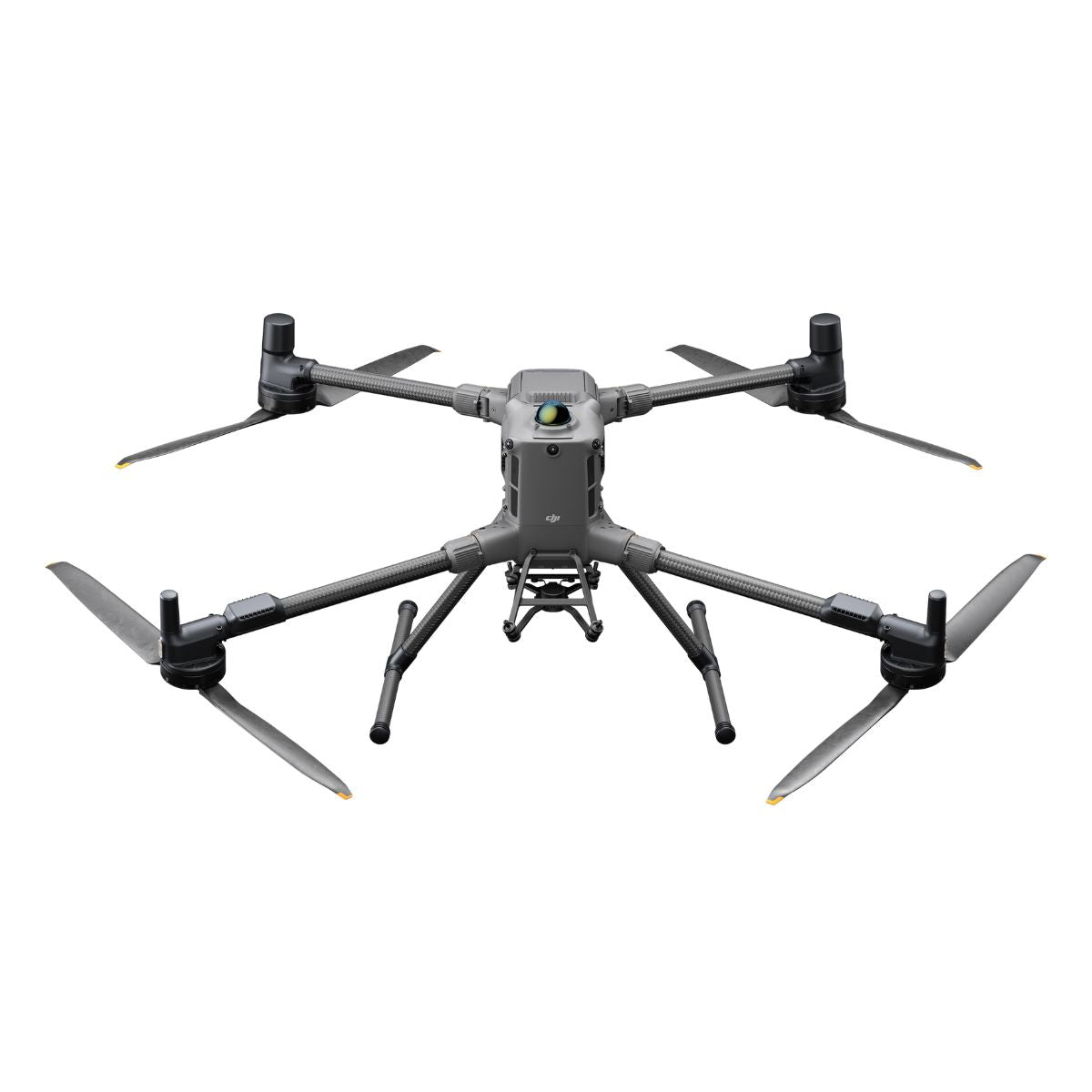

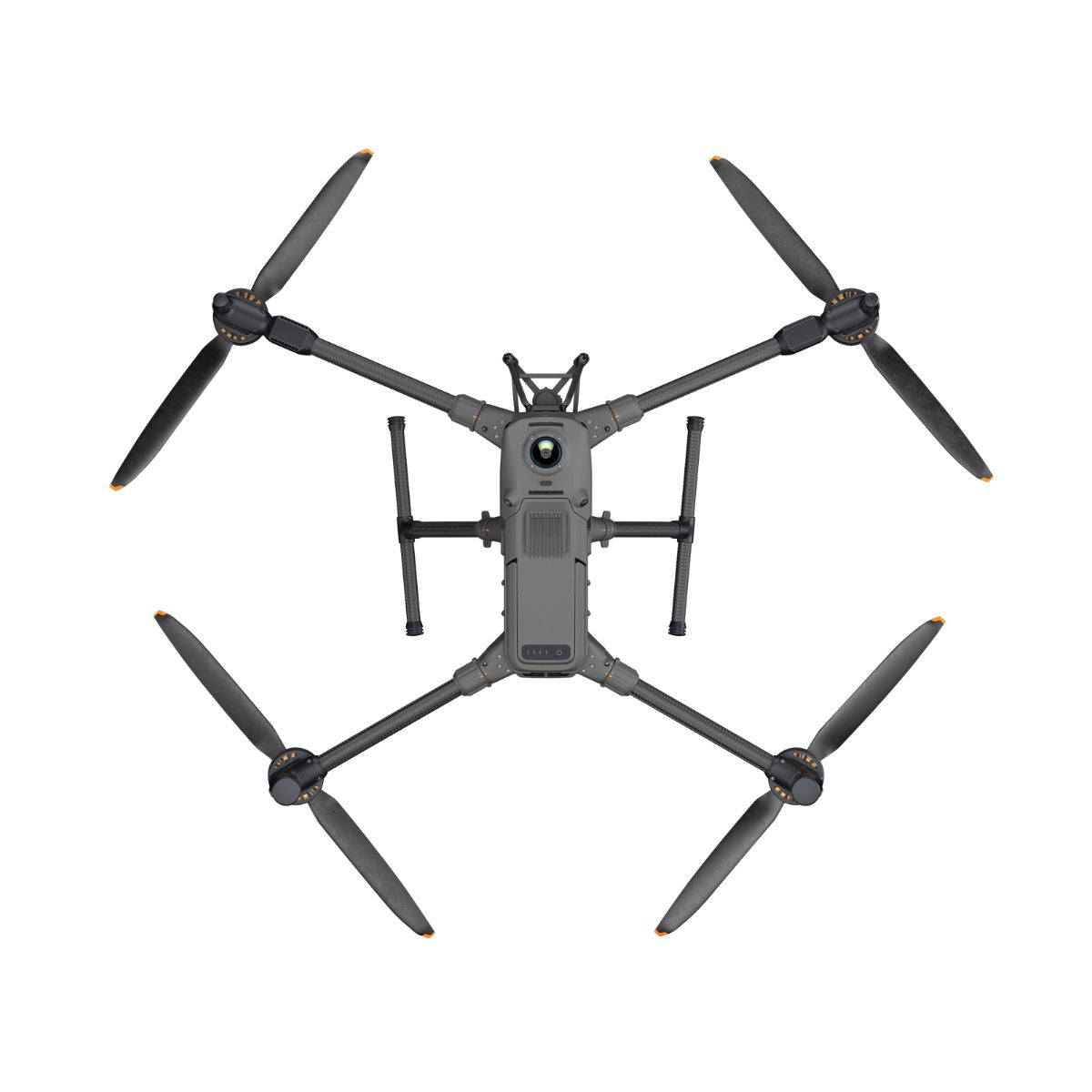

DJI Matrice 400 with BS100 Battery Station + TB100 Intelligent Flight Battery

DJI Matrice 400 with BS100 Battery Station + TB100 Intelligent Flight Battery Bundle: Unmatched Uptime. Uncompromising Performance.

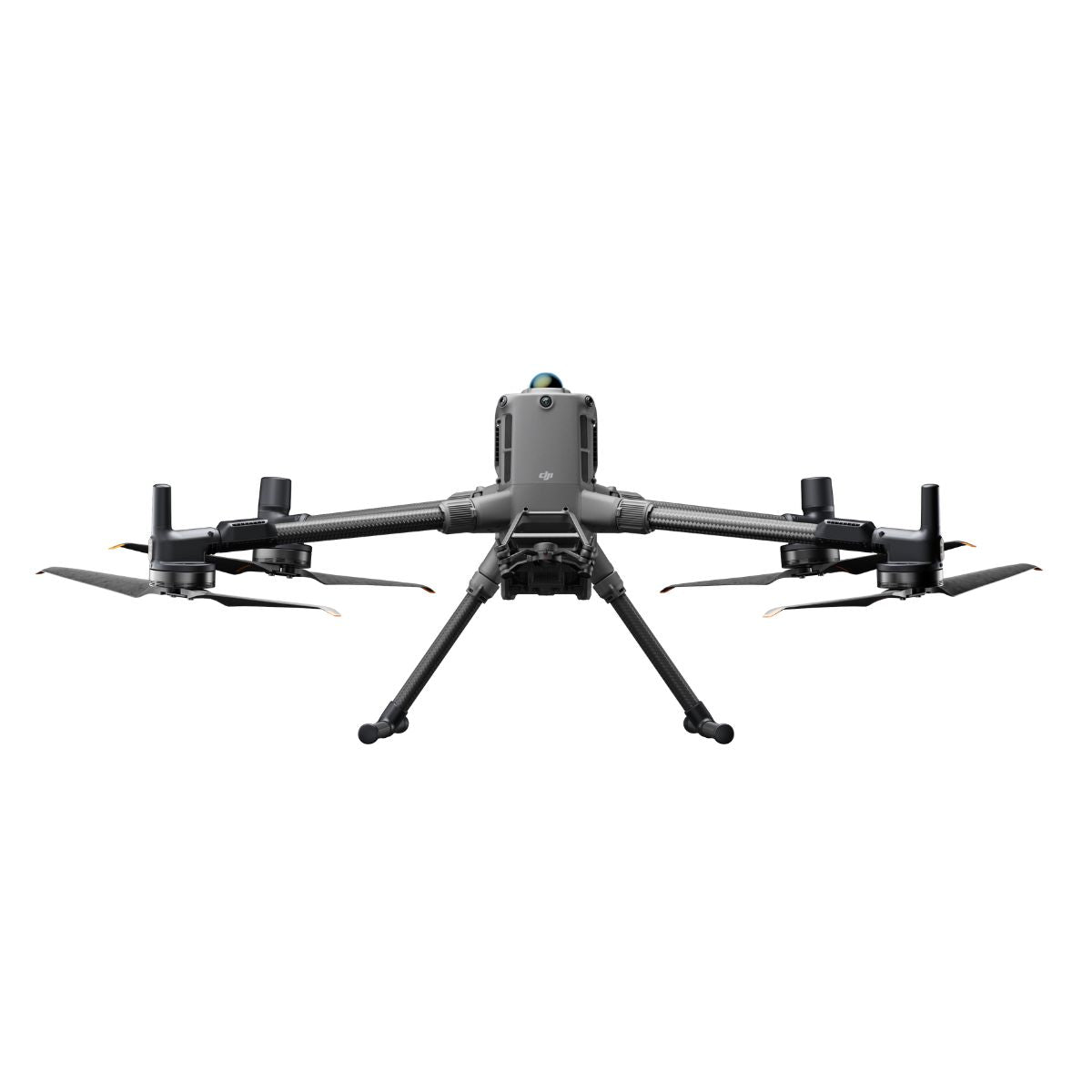

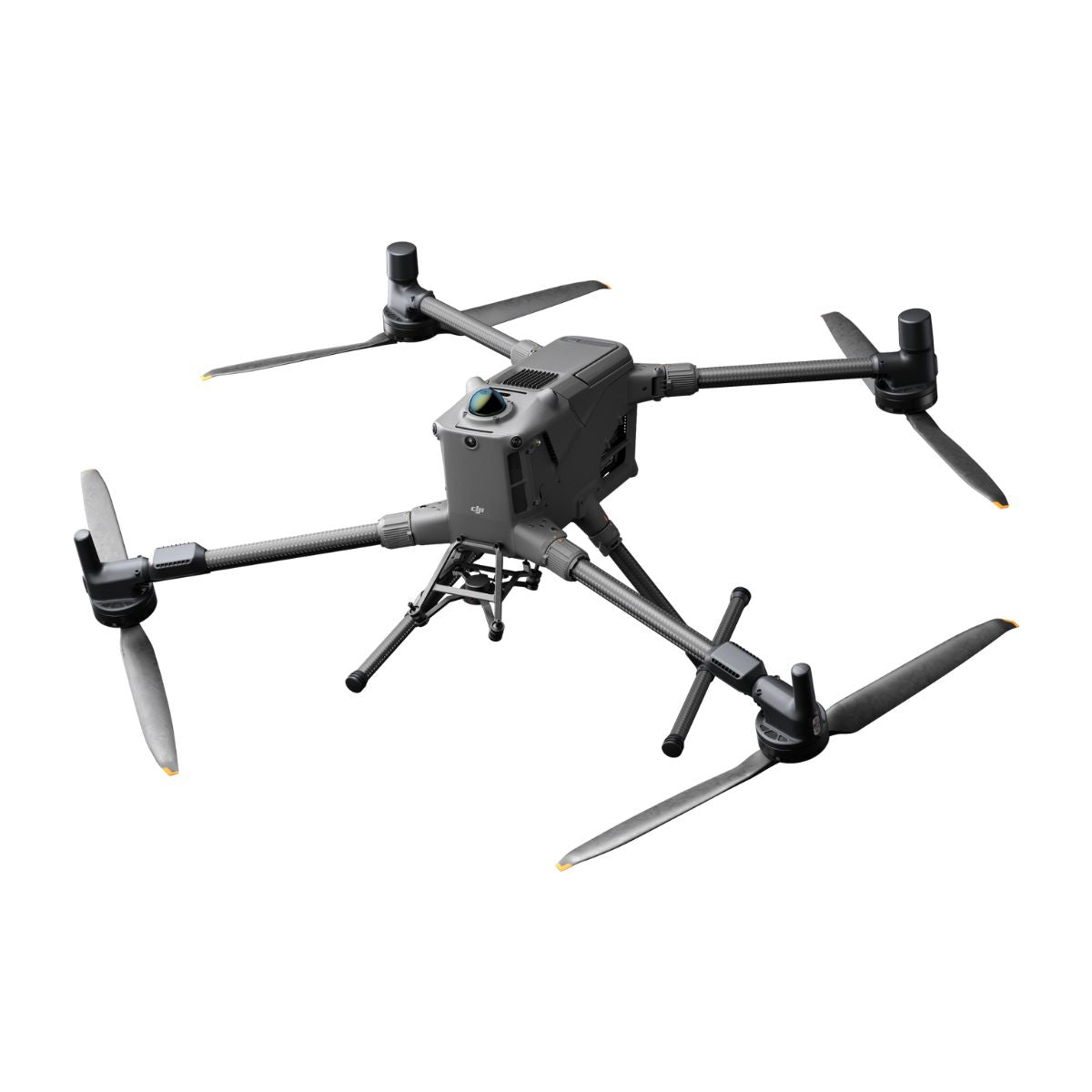

The DJI Matrice 400 is DJI's most advanced enterprise platform to date-now paired with the BS100 Intelligent Battery Station and one TB100 intelligent flight battery. This bundle ensures maximum uptime, efficient workflow, and complete mission flexibility. With up to 59 minutes of forward flight time, 53 minutes hover time, a 6kg payload capacity, and one of the most advanced sensing systems on the market, the M400 is engineered for industrial inspections, mapping, public safety, and high-demand operations. Combined with intelligent power management, it keeps your team flying longer with fewer delays.

Designed for Demanding Missions

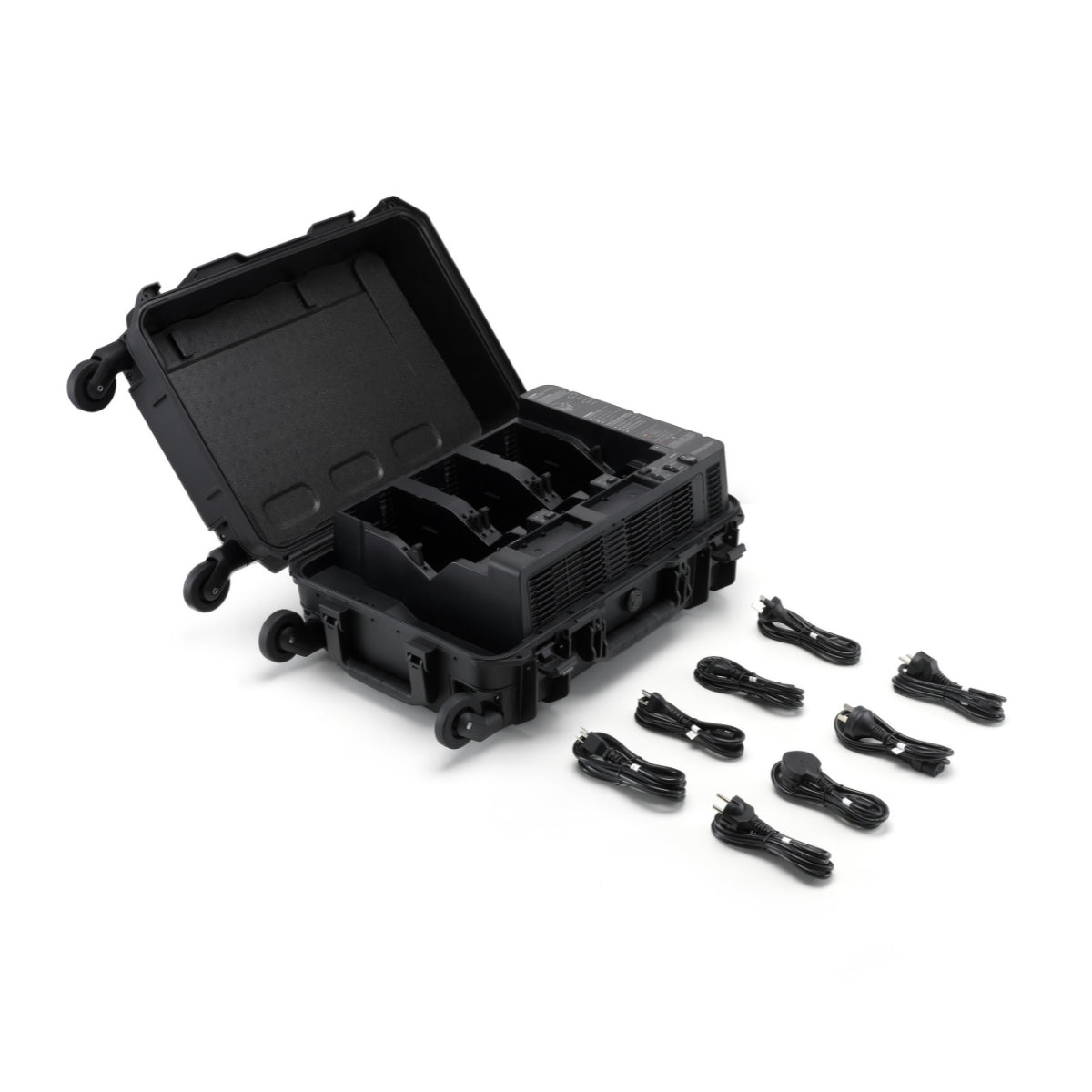

The BS100 Intelligent Battery Station transforms mission readiness. It charges three TB100 batteries to 100% in just 45 minutes (220V), offers Quiet Mode for low-noise environments, and supports auto-discharge to protect long-term battery health. Integrated diagnostics and remote control through the RC Plus 2 simplify battery rotation and ensure safe, reliable power in the field.

Built for Scale and Reliability

The M400 integrates a 10-antenna O4 Enterprise system with 40 km transmission, dual 4G dongle support, sub-2GHz fallback, and relay drone capability for extended range. Its IP55-rated body withstands rain, dust, and -20 °C to 50 °C conditions. Multi-layer obstacle sensing-rotating LiDAR, mmWave radar, and low-light fisheye vision-delivers power-line-level detection even at 25 m/s and on reflective structures like glass or wind turbines. Combined with AI-driven Smart Detection, AR Projection overlays, and Real-Time Terrain Follow, the M400 ensures safer, more efficient operations.

Key Features

• DJI's most advanced enterprise drone with 59-minute forward flight time
• 6kg max payload capacity with support for up to 7 simultaneous payloads
• Rotating LiDAR, mmWave radar, and low-light fisheye vision for triple-layer obstacle avoidance
• IP55-rated airframe for rain, dust, and harsh environments; -20 °C to 50 °C temperature range
• BS100 Intelligent Battery Station: 3 × TB100 full charge in 45 minutes (220V)
• Charging modes: Quiet, Standard, Rapid, and Auto-Discharge, all remote-controlled
• DJI O4 Enterprise transmission system: 40 km range, 1080p/60fps live stream
• Dual 4G dongle support and sub-2GHz fallback for interference-resilient data links

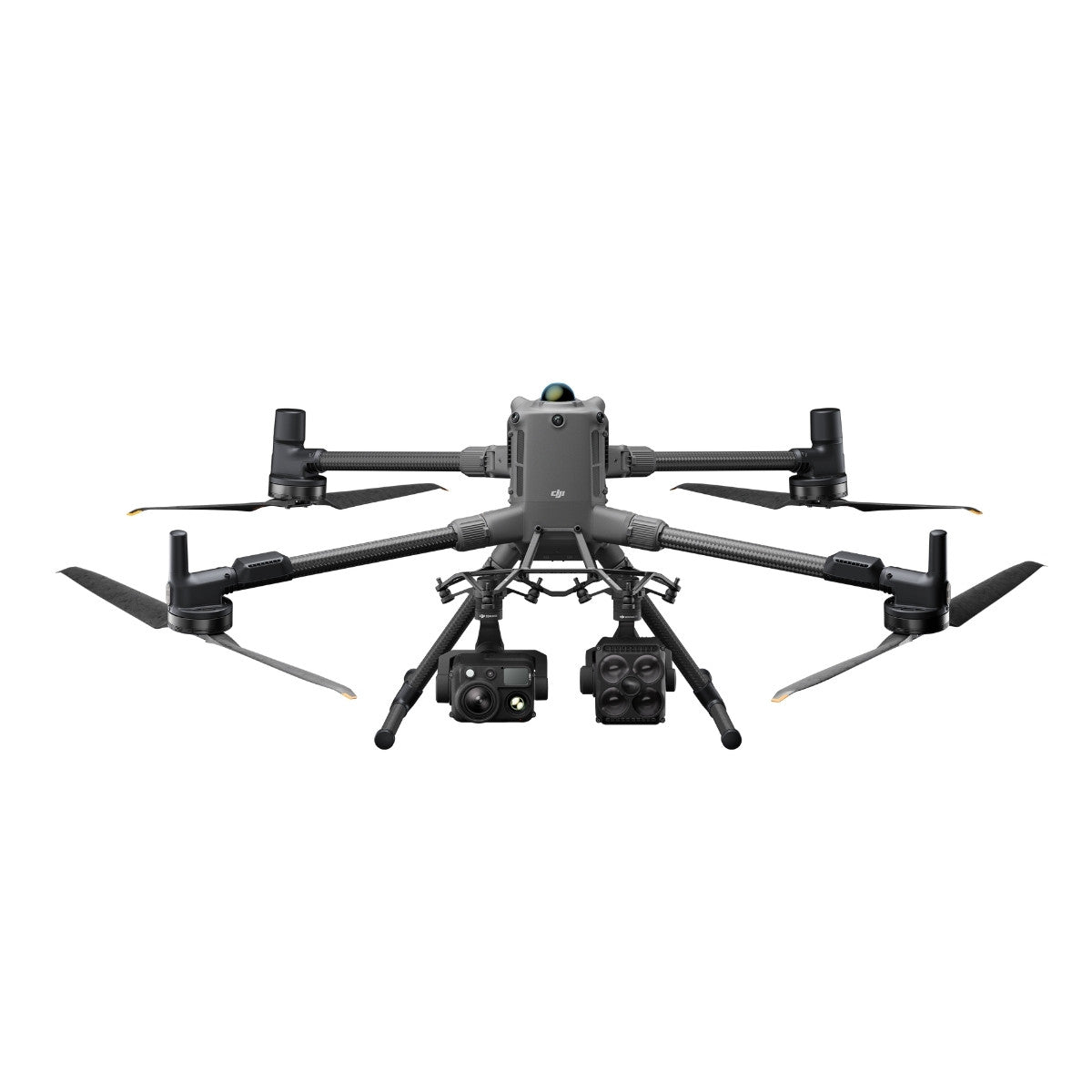

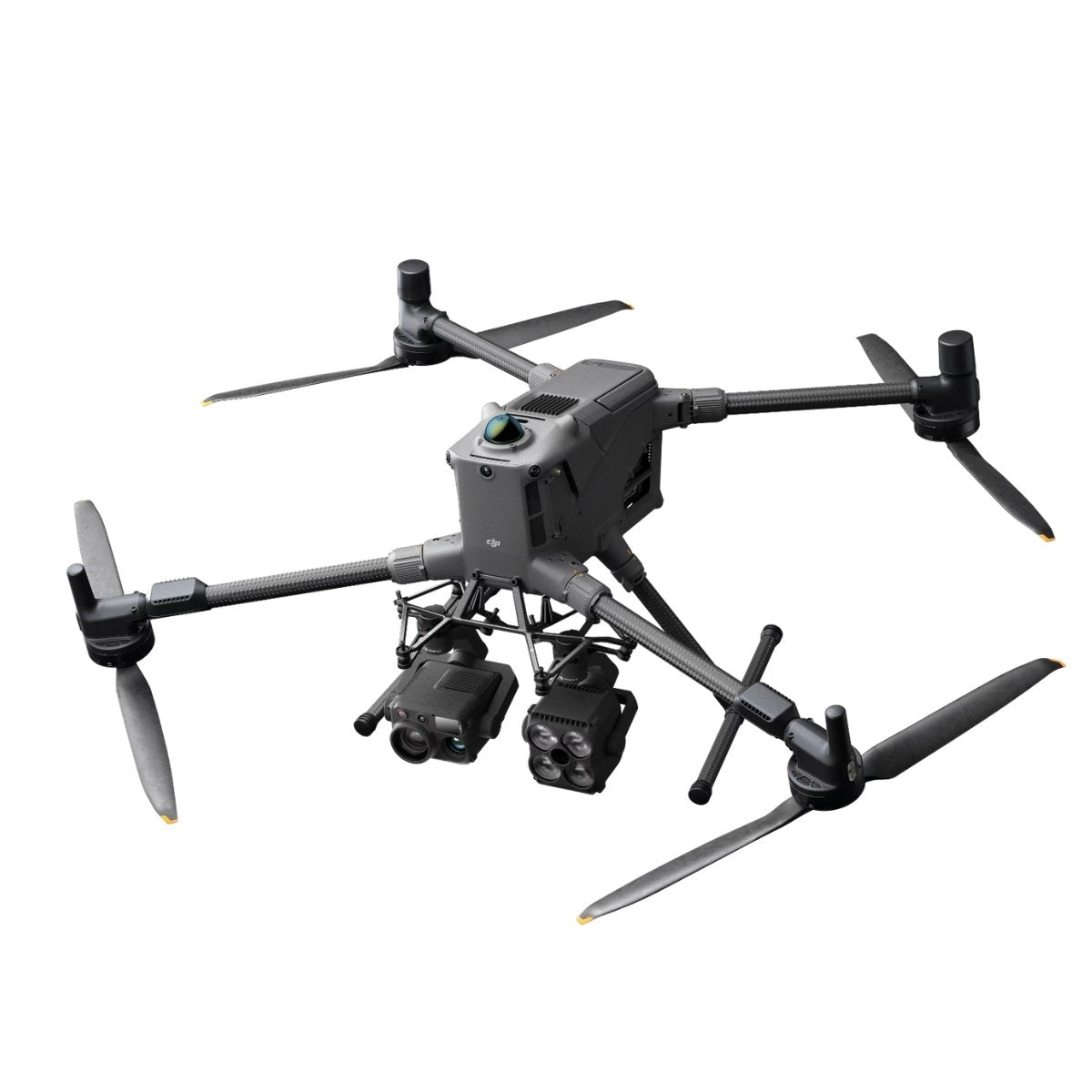

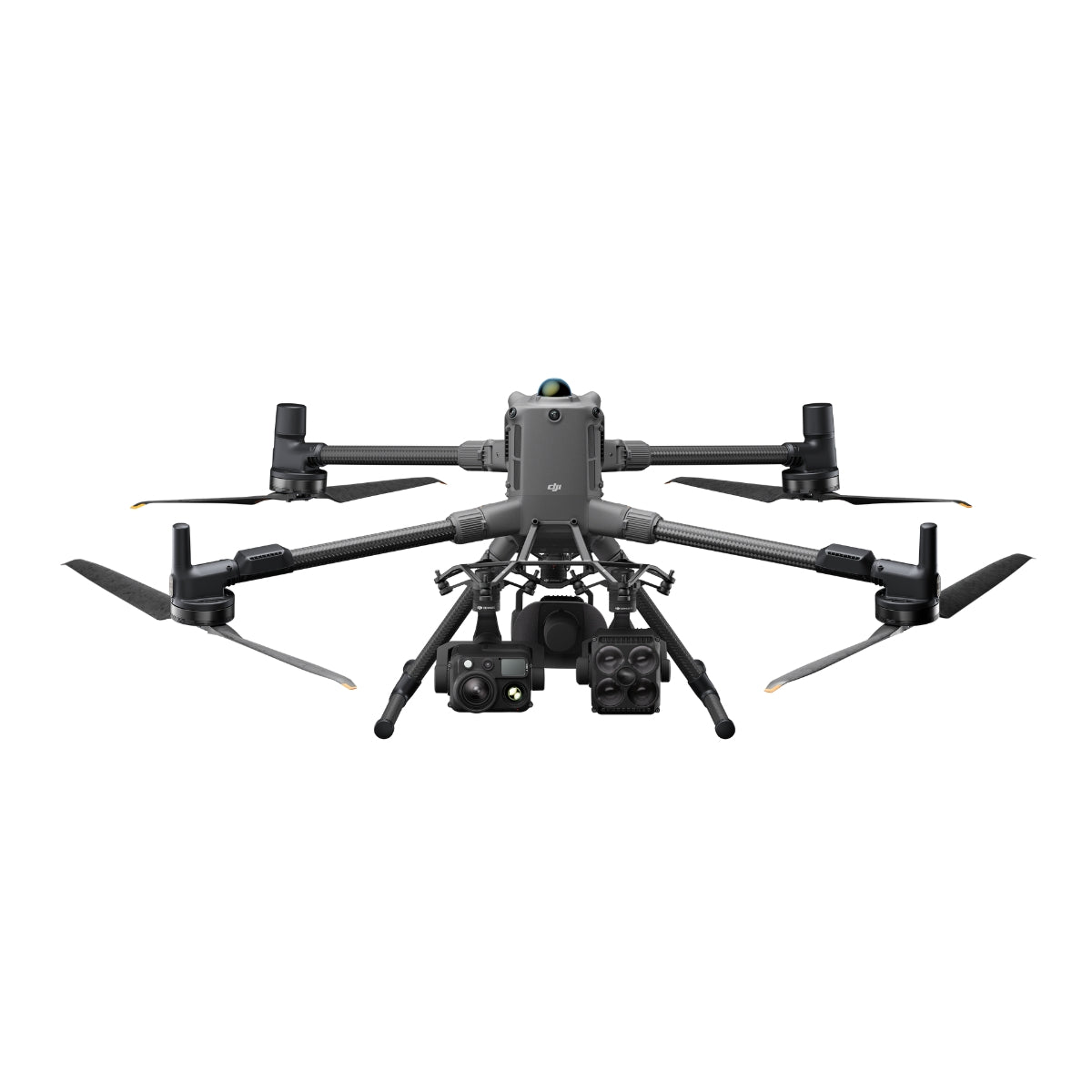

Compatible Payloads

The Matrice 400 is built to support a wide array of DJI and third-party payloads through its advanced gimbal ports and E-Port V2 interfaces:

• Zenmuse H30 Series - All-in-one ISR sensor (wide, zoom, thermal, NIR, laser rangefinder)
• Zenmuse L2 LiDAR - 240k pts/s frame-based LiDAR + 4/3" RGB camera for point-cloud deliverables
• Zenmuse P1 Photogrammetry - 45MP full-frame stills with 0.7s interval shooting and swappable lenses
• Zenmuse Spotlight S1 - 32W long-throw spotlight for tactical night operations
• Zenmuse Speaker V1 - 114 dB broadcast capability for emergency and public announcement applications
• Manifold 3 - Onboard NVIDIA® 100 TOPS processor for real-time AI and onboard autonomy
• 3rd-Party Payloads - Gas sensors, UV/multispectral cameras, facade cleaners, oblique cameras
• Tethered Power Systems - DJI TB100C-compatible for continuous flight and persistent surveillance

Applications

• Public Safety & SAR: Execute long-duration, high-visibility, or low-light search and rescue with thermal, spotlight, and audio tools.
• Infrastructure & Utilities: Use LiDAR, photogrammetry, and obstacle-aware autonomy to inspect towers, lines, bridges, and substations.
• Geospatial & Mapping: Rapidly map large corridors, slopes, or elevation profiles with centimeter-grade accuracy and consistent GSD.
• Maritime & Offshore Ops: Launch and land on vessels, detect objects at sea, and relay live visuals to command centers onshore.
• Construction & AEC: Capture high-res ortho/oblique imagery, 3D mesh, and point clouds for digital twins, site monitoring, and modeling.
• Specialized Operations: Execute tethered missions, facade cleaning, or environmental data collection with real-time battery turnover.

Ready for the Most Demanding Missions

DSLRPros is trusted by law enforcement, utility providers, federal contractors, and industrial firms nationwide. We offer more than just hardware-we provide fully configured systems, workflow consultation, onboarding, and long-term technical support. Our team works with you to determine the right payloads, software integrations, and mission strategies to help you get the most out of your Matrice 400 investment.

The DJI Matrice 400 Enterprise Bundle delivers unmatched performance, flexibility, and operational safety for the most demanding industries.

DSLRPros goes beyond hardware-providing consultation, training, and ongoing support. Shop now to purchase your DJI Matrice 400 with BS100 Battery Station + TB100 Intelligent Flight Battery directly, or contact our team to configure the right payloads and accessories for your mission.

Specifications

Aircraft

• Takeoff Weight (with propellers): Without Batteries: 5020 ± 20 g; With Batteries: 9740 ± 40 g
• Max Takeoff Weight: 15.8 kg
• Dimensions: Unfolded: 980×760×480 mm; Folded: 490×490×480 mm; Carrying Case: 779×363×528 mm
• Max Payload: 6 kg
• Propeller Size: 25 inches
• Diagonal Wheelbase: 1070 mm
• Max Ascent Speed: 10 m/s
• Max Descent Speed: 8 m/s
• Max Horizontal Speed: 25 m/s
• Max Takeoff Altitude: 7000 m
• Max Flight Time: 59 minutes
• Max Hover Time: 53 minutes
• Max Flight Distance: 49 km
• Max Wind Resistance: 12 m/s
• Max Yaw Angular Velocity: 100°/s
• Max Pitch Angle: 35°
• Operating Temperature: -20° to 50 °C
• GNSS: GPS + Galileo + BeiDou + GLONASS*
• Hovering Accuracy:
  • Vertical: ±0.1 m (vision), ±0.5 m (satellite), ±0.1 m (RTK)
  • Horizontal: ±0.3 m (vision), ±0.5 m (satellite), ±0.1 m (RTK)
• RTK GNSS Accuracy: 1 cm + 1 ppm (H), 1.5 cm + 1 ppm (V)
• RTK Heading: Better than 2°
• ADS‑B In: Range: 20 km
• Internal Storage: N/A
• Ports: USB‑C Debug, E‑Port V2 ×4, Cellular Dongle 2 ×2
• Propeller Model: 2510F
• Beacon: Built-in
• Ingress Protection: IP55

Gimbal

• Max Payload (Single Connector): 1400 g
• Max Payload (Dual Connector): 950 g
• Max Payload (Third Connector): 3 kg (quick‑release), 6 kg (screw lock)

Sensing System

• Sensors: Omnidirectional binocular vision, LiDAR, infrared, mmWave radar
• Forward/Backward: Range: 0.4-21 m; Detection: 0.4-200 m; FOV: 90°×90°
• Lateral: Range: 0.6-21 m; Detection: 0.5-200 m; FOV: 90°×90°
• Downward: Range: 0.5-19 m; FOV: 160° front/rear, 105° sides
• Rotating LiDAR: Range: 0.5-100 m; FOV: 360°×58°
• Upper LiDAR (3D ToF): Range: 0.5-25 m; FOV: 60°×60°
• Infrared: Range: 0.3-8 m; FOV: 60°×60°
• mmWave Radar: Range: 36-50 m; FOV: ±45°

FPV Camera

• Resolution: 1080p
• Field of View: DFOV 150°, HFOV 139.6°, VFOV 95.3°
• Frame Rate: 30 fps
• Night Vision: Starlight-grade

Video Transmission

• System: DJI O4 Enterprise Enhanced
• Live View: 3‑channel 1080p/30fps
• Frequencies & Power: Multiple bands including 902-928 MHz, 2.4 GHz, and 5.8 GHz
• Max Distance: 40 km (FCC), 20 km (CE)
• Performance with Interference: 1.5-40 km depending on strength
• Max Download Speed: 80 Mbps
• Antennas: 8 WLAN, 2 sub2G, 4G ×4
• Other Features: Dual Control, Cellular Dongle support

Battery

• Model: TB100
• Capacity: 20254 mAh
• Voltage: 48.23 V
• Max Charging Voltage: 54.6 V
• Cell Type: Li-ion 13S
• Energy: 977 Wh
• Weight: 4720 ± 20 g
• Charging Temp: 5-45 °C
• Discharging Temp: -20-75 °C
• Heating: Onboard & Station Support
• Discharge Rate: 4C
• Max Charging Power: 2C
• Cycle Count: 400

Battery Station

• Model: BS100
• Weight: 11.8 kg
• Dimensions: 605×410×250 mm
• Supported Batteries: TB100 / TB100C / WB37
• Operating Temperature: -20-40 °C
• Input: 100-240 V AC
• Output:
  • TB100: up to 2184 W
  • WB37: 52 W
  • USB‑C: up to 65 W
• Charging Channels: 3 TB100 & 2 WB37
• Modes: Ready‑to‑Fly, Standard, Fast, Silent
• Charging Time: 45-110 min depending on mode and voltage

Remote Controller (DJI RC Plus 2)

• Video Transmission: DJI O4 Enterprise Enhanced
• Max Distance: 40 km (FCC), 20 km (CE)
• Frequencies: Multiple bands
• Antennas: 2T4R dual‑band + sub2G 2T2R
• Wi‑Fi: 802.11 a/b/n/ac/ax, up to 1774.5 Mbps
• Bluetooth: 5.2
• Screen: 7.02″, 1920×1200, 1400 nits
• Battery: Internal (6500 mAh) + Optional External (4920 mAh)
• Runtime: 3.8 h (internal), 7 h (w/ external)
• Charging Time: ~2 h
• Storage: 8 GB RAM + 128 GB + microSD
• Ports: HDMI, SD, USB‑C (PD), USB‑A
• Weight: 1.15 kg
• Dimensions: 268×163×94.5 mm
• GNSS: GPS + Galileo + BeiDou
• OS: Android 11

Supported Accessories

• Zenmuse H30/H30T/L2/P1
• Zenmuse S1, V1
• Manifold 3
• DJI RC Plus 2 sub2G SDR
• Cellular Dongle 2
• D‑RTK 3 & 2
• X‑Port, E‑Port V2
• SkyPort V3 Adapter

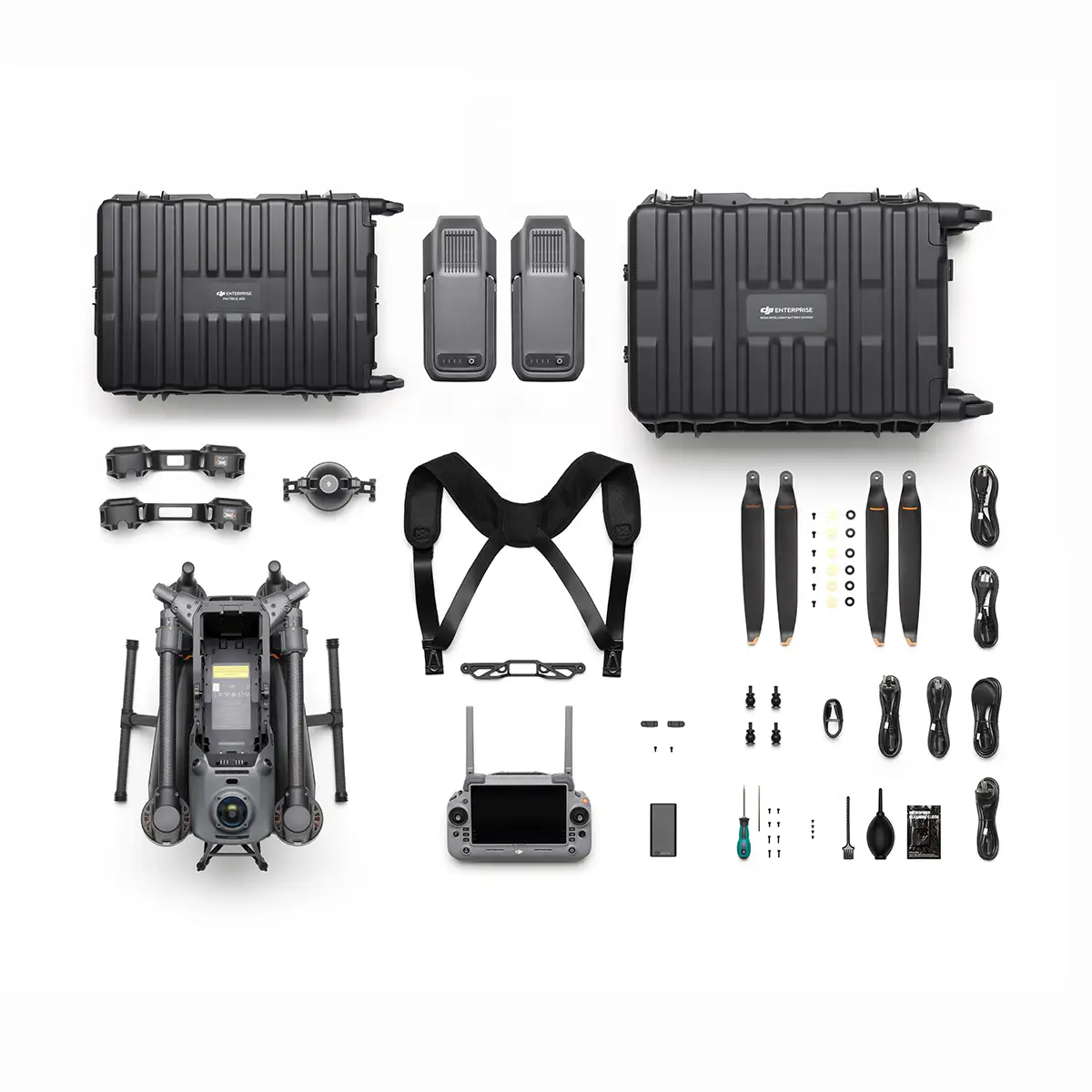

In the Box

• 1x Aircraft (with propeller holder)
• 1x Carrying Case
• 2x Propellers (Pair)
• 6x Propeller Washers and Screws
• 1x Remote Controller (with DJI RC Plus 2 sub2G SDR Module)
• 1x Power Cable
• 1x BS100 Intelligent Battery Station
• 1x TB100 Intelligent Flight Battery
• 1x Remote Controller Strap and Bracket (with two screws)
• 1x WB37 Intelligent Battery
• 2x Landing Gear
• 1x USB-C to USB-C Cable
• 1x Screws and Tool Set
• 1x Cleaning Tool Set
• 1x Rubber Port Covers and Screws
• 4x Gimbal Damper
